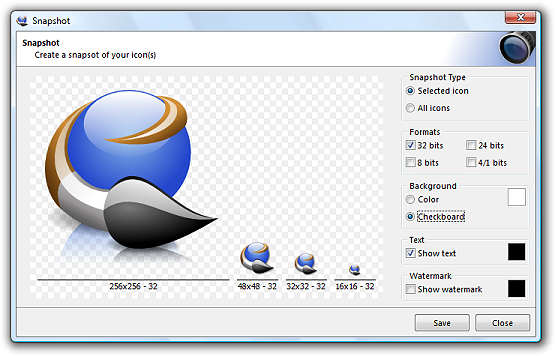

Snapshot Window

  Alt+P

Using the Snapshot window you can create snapshots from the currently opened icons.

Using this window you can quickly overview your icons. You can also save the generated image as an image file. The following image types are available:

• Bitmap Image (*.bmp)
• Portable Network Graphik (*.png)
• JPEG Image (*.jpg)
• JPEG 2000 Image (*.jp2)

You can set the snapshot type also. You can create snapshot only for the currently selected icon, or for all icons that are opened inside IcoFX.

Using the Format group box you can select the image types, which will be included in the snapshot.

You can also set the background of the image. If you select "Color" then the background will have a solid color, that can be changed using the color button. If you select the "Checkboard" then the background will have a texture like the canvas. This option is better for checking the transparency of the icons.

If you select the "Show Text" option then the size and data type of the image will be displayed on the image. You can set the color of the text using the nearby color button.

You can add a watermark to the image. This is useful if you want to post your image on the Internet and you don't want others to copy it. If you use watermark then on the image there will be lines. You can change the color of the lines using the nearby color button.
